What oil skimmers do and when to use one
An oil skimmer removes foreign oil that has risen to the surface of a machine-tool sump or compatible industrial reservoir. The same selection principles apply to CNC machines, conventional machine tools, and other compatible process reservoirs.
Tramp oil commonly enters from hydraulic leaks, way lubrication, spindle lubrication, and other machine oils. Surface skimming is appropriate when this foreign oil repeatedly forms a reachable layer and source control alone does not eliminate it. The practical objective is to remove an oil-rich stream while carrying out as little working coolant as possible.
How the unwanted oil behaves determines whether surface collection is a suitable starting point:
- Oil floating as a separate surface layer (free oil) is generally the easiest condition to collect.
- Oil droplets held below the surface by circulation, turbulence, or pumping (unstable or mechanically generated dispersion) may need residence time or compatible downstream coalescing before the oil can separate.
- Oil bound by fluid chemistry (stable chemically emulsified phase) cannot be reliably removed by conventional gravity coalescing.
Surface collection also depends on physical conditions. Turbulence, chips, foam, changing liquid levels, and restricted access can prevent the pickup from remaining in the oil-rich zone.
Compare the main oil-skimmer types
Belt, disc, tube, drum, brush, and rope-mop skimmers collect oil with moving oil-attracting surfaces. Floating weir and suction skimmers collect an oil-rich surface stream that is usually sent to a pump, separator, or treatment system. Absorbent-media systems capture surface oil in replaceable pads, rolls, or similar material for intermittent removal.
A floating weir may serve as the inlet to a suction system, and suppliers may use tube, rope-mop, or snake-skimmer terminology differently, so equipment names can overlap. Compare the pickup mechanism, fluid compatibility, reservoir geometry, oil load, solids, and coolant carryout before selecting a design.
Scroll horizontally to compare all columns.
| Type | Category and method | Where it can fit | Operating limits |
|---|---|---|---|
| Belt | Mechanical skimmer. A continuous vertical belt passes through the surface layer. Wipers remove the liquid carried back by the belt. | Machine sumps with a suitable top opening and enough vertical clearance. Belt length can be selected for the operating depth and expected level range. | Chips can interfere with the belt or wipers. Belt material must suit the fluid and oil. Turbulence and poor placement can increase coolant carryout. |
| Disc | Mechanical skimmer. A rotating disc contacts the surface layer and carries collected liquid to wipers. | Open reservoirs with enough horizontal and vertical clearance for the disc and drive. | Disc diameter determines vertical reach, and the disc must remain in contact with the liquid. Large level changes or limited clearance can move the surface outside the disc's operating range. |
| Tube | Mechanical skimmer. A flexible closed-loop tube rests on the surface, attracts oil, and passes through wipers at the drive unit. | Reservoirs where a flexible pickup can reach around internal features or where the available opening does not suit a wide disc. | Tube designs vary widely. Confirm tube material, rated capacity, access path, and tolerance for sharp or abrasive contact. Debris tolerance is model-specific. |

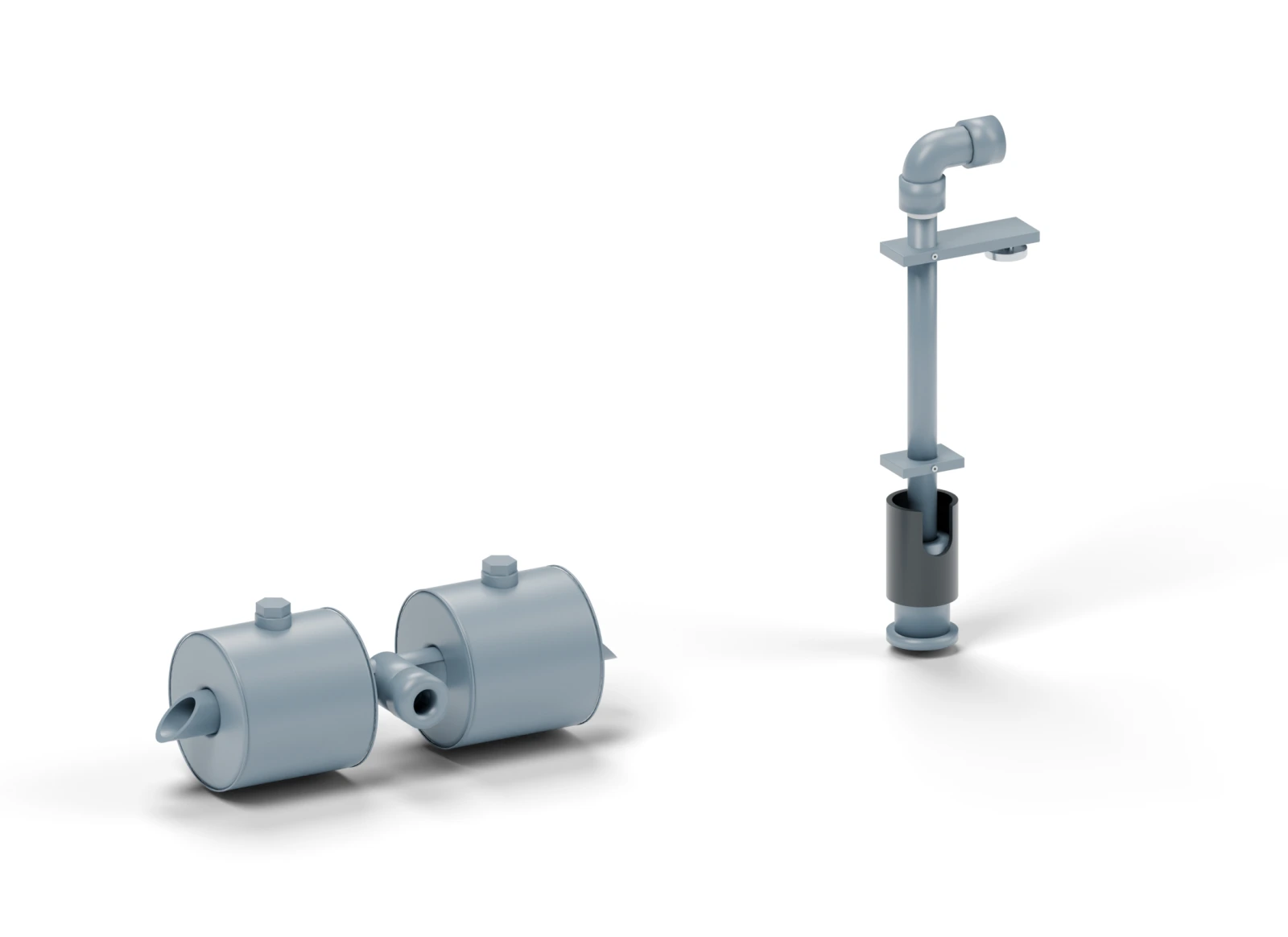

| Floating weir skimmer | Surface-pickup skimmer. A floating or adjustable opening follows the liquid surface and admits the top layer into a suction line or downstream treatment system. | Reservoirs with changing liquid levels where a surface-following intake can feed a remote or dedicated separator. | Weir setting must account for level change, chips, foam, and coolant carryout. An incorrect position can draw air or excessive working fluid. |
| Suction skimmer | Pumped surface-pickup skimmer. A positioned or floating pickup draws surface fluid through a hose to a pump, collection vessel, or separator. | Applications requiring remote treatment, portable service, or downstream solids filtration and coalescing. | Pickup depth, flow control, and pump selection affect coolant carryout and the risk of redistributing oil. Chips and foam can obstruct the inlet. |
| Drum | Mechanical skimmer. A rotating oil-attracting drum contacts the surface layer, and wipers direct the collected liquid into a trough or container. | Open tanks and larger reservoirs with enough surface area and clearance for the drum and drive. | Drum material must suit the fluid and oil. Liquid-level range, surface access, solids, and turbulence affect contact and coolant carryout. |
| Brush | Mechanical skimmer. Rotating oil-attracting brushes or bristles pass through the surface layer and release collected liquid at the drive unit. | Industrial reservoirs where the selected brush design suits the oil viscosity, access, and debris conditions. | Brush material, cleaning method, solids tolerance, and collection rate are model-specific. Fibers and moving parts require inspection. |
| Rope-mop | Mechanical skimmer. A continuous loop of oil-attracting rope or mop material travels across the surface and through a wringer or scraper that removes the collected liquid. | Large, irregular, or open reservoirs where a flexible loop can cover more surface area than a rigid disc or drum. | The loop can snag on obstructions or collect debris. Material compatibility, routing, abrasion, and coolant carryout require attention. |
| Absorbent media | Intermittent surface collection. Oil-attracting pads, rolls, socks, or similar media contact the surface and retain collected oil for removal. | Small or intermittent surface films, spill response, and locations where a powered skimmer is impractical. | Media is consumed during use and requires handling and disposal. Capacity, selectivity, saturation, and compatibility vary by product. |
All of these methods can carry working fluid out with the oil. Compare the oil concentration in the collected stream and the applicable performance measure, such as pickup rate or absorbent capacity.
When downstream separation is needed
A surface pickup reaches the floating oil layer and removes an oil-rich mixture from the reservoir. A gravity coalescer processes a compatible mixture so releasable oil droplets can contact media, merge, rise, and form a removable layer. These are related but different jobs.
Scroll horizontally to compare all columns.
| Stage | Primary job | Best suited condition | Operating limits |
|---|---|---|---|
| Surface pickup | Collect the floating oil layer or oil-rich surface fluid. | Free oil that reaches an accessible and reasonably calm surface. | It may remove working coolant with the oil and may not capture droplets that remain dispersed below the surface. |
| Gravity coalescing | Separate suitably releasable oil droplets from collected fluid and support clarified-fluid return. | Free or mechanically dispersed tramp oil in a compatible fluid that releases the foreign oil as a separate phase. | Conventional gravity coalescing cannot reliably break a stable chemically emulsified phase, correct coolant concentration, or replace the solids filtration required by the application. |
A compatible separator may combine surface pickup with solids filtration, coalescing, separated-oil decanting, and clarified-fluid return. For more detail about the mechanism, fluid compatibility, and operating limits, see how oil coalescers work.
Selection factors that determine the right method
Skimmer choice depends on four groups of operating conditions: fluid behavior, sump geometry, contaminant load, and available utilities.
Fluid and oil behavior
- Identify the working fluid by manufacturer and product, then identify each incoming hydraulic oil, lubricant, or other foreign oil.
- Record whether each contaminant forms a distinct surface layer, remains as droplets, or does not separate after the fluid rests.
- Use a bottle test to observe whether the oil separates at rest, then compare the equipment's rated capacity with the oil load and required treatment rate.
Sump geometry and access
- Reservoir volume, depth, liquid-level range, opening size, covers, internal obstructions, and mounting clearance determine which pickup will fit.
- Confirm that the selected pickup can remain in the oil-rich surface zone throughout normal operation.
- Identify whether a calmer collection area is available away from turbulent returns, agitation, or chip flow.
Contaminant load and operating conditions
- Distinguish an occasional surface film from oil entering continuously through a leak or repeated contamination. Correct preventable leaks and lubrication losses where practical.
- Account for chips, fines, sludge, foam, circulation, turbulence, and the available treatment schedule.
- When solids could obstruct or foul the selected coalescing system, provide suitable upstream solids removal and adequate service access.
Utilities, movement, and handling
- Available air or electrical service, floor and aisle access, hose routing, discharge location, and equipment movement all affect installation and operation.
- Plan the receiving container and facility procedures for recovered oil before operation.
- Measure coolant carryout as well as total collected volume. Prioritize an oil-rich collected stream with minimal working-coolant carryout.
Operating practices that improve surface skimming
Equipment selection establishes the basic capability. Placement, operating schedule, adjustment, and routine service determine whether the pickup consistently reaches the oil-rich surface layer.
- Reduce avoidable oil sources. Repair leaks and review lubrication practices, then size and operate the equipment for the remaining oil load.
- Use an appropriate operating schedule. Surface skimming often performs better during calmer periods, although equipment rated for continuous duty can operate continuously when reservoir conditions permit.
- Keep the pickup at the surface. Verify its position across the normal liquid-level range and adjust it when operating conditions change.
- Limit coolant carryout. Adjust pickup depth, weir setting, media speed, suction flow, or operating time so the collected stream remains oil-rich.
- Inspect the fluid path. Check the pickups, wipers, hoses, filters, coalescing media, and discharge paths fitted to the system according to the equipment instructions.
- Track the result. Record surface condition, recovered oil, coolant carryout, operating time, and service condition so placement and schedule can be refined.
When the coolant needs additional treatment
Surface skimming collects foreign oil that reaches the pickup at the surface. Other coolant conditions call for additional treatment or fluid-supplier guidance:
- Oil that stays dispersed: evaluate compatible downstream coalescing when the droplets remain physically separable, or consult the fluid supplier when the mixture remains chemically emulsified.
- Chips, fines, sludge, or floating debris: use solids control and sump cleaning suited to the material and fluid.
- Concentration or chemistry problems: follow the coolant supplier's testing and correction guidance for an out-of-range concentration, depleted additives, corrosion, or severely degraded fluid.
- Installed operating conditions: verify fluid compatibility, pickup placement, liquid-level range, turbulence, contaminant load, and operating duty.
A rested sample that forms no distinct oil layer needs further evaluation before equipment is selected. Color or cloudiness alone cannot identify the cause, so consult the fluid supplier.
A practical selection path for machine shops
- Check whether the tramp oil separates. Let representative coolant rest with each likely incoming oil and look for a distinct surface layer.
- Match the pickup to the sump. Compare belt, disc, tube, drum, brush, rope-mop, or absorbent-media methods when free oil is reachable at the reservoir. Use access, level range, clearance, solids, and oil loading to narrow the choice.
- Consider a weir or suction skimmer when needed. A floating weir skimmer or suction skimmer may suit changing levels, remote treatment, or a mixed stream that will be processed downstream.
- Correct excessive coolant carryout. Review pickup depth, weir or suction setting, media speed, wiper condition, and operating time. Evaluate secondary separation if carryout remains excessive.
- Address oil that remains below the surface. Evaluate compatible downstream coalescing for oil that remains dispersed below the surface.
- Review a mixture that does not separate. If the oil remains chemically emulsified after the fluid rests, consult the fluid and lubricant suppliers. This condition requires chemistry review or another treatment method because conventional gravity coalescing relies on oil droplets separating from the fluid.
For several compatible reservoirs treated one at a time, our portable T.O.S.S. T1 can move between machines when the shop can maintain the required schedule. Our standard T.O.S.S. series offers configurations selected by fluid compatibility, oil load, treatment rate, and operating duty.
When several machines also need particulate control, coolant concentration management, clean-fluid storage, and reuse, an industrial coolant recycling system can address those shop-wide functions.
